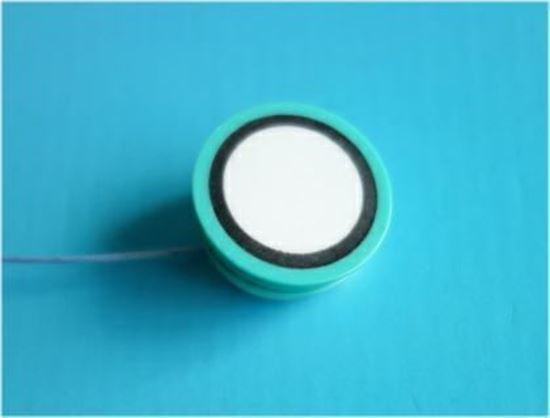

Piezo Air Transducer 175 KHz 28mm

SMATR175D28PK - 1 Pc/Set
Manufacturer part number: SMATR175D28PK
Availability: 14 in stock
$38.00
$8.97
$0.00
/1 Pc Set
Condition: New

Part Number: SMATR175D28PK

Our Piezo Air Transducer is Water proof and it is Transmitter/Receiver on the same unit.

Housing Material: Plastic & Copper
Dimensions: 28mm X 12.3mm
Nominal frequency fr: 175kHz ± 2%
Wires/Connections: 32mm Wires
Sensitivity: -68 dB Min. (0dB = 100Vpp 10 Bursts/20cm)
Capacitance: 600pF±20%
Max. Input Voltage: 150Vp-p (Impulse wave)
Ringing: 0.6 ms Max.
Tipical Directive (-6dB): 10º
Test Condition: 22±3 °C 40~70% R.H.
* Actual properties will depend on driving circuit.

Applications, among others, are: Distance Meter, Distance Sensor, Sound Detector, Robot Navigation, Send/Receive data, locating, Flow measurement, traffic measurement.
