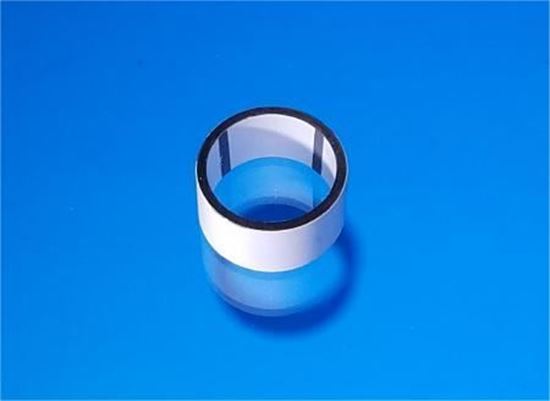

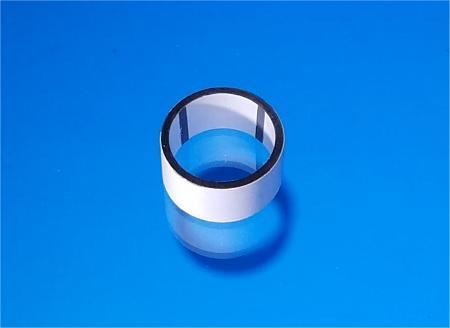

Part Number: SMC2622T13111SPPiezo Cylinder Stripe Electrode 43 KHz. Radial mode vibration. Applications, among others, are: Piezo transducer for Underwater communication to send receive data and voice. It is also used for vibration, matter dispersion, biomedical probes, sonar, Hydrophone
Piezo Material: SM111
Dimensions: Ext. Diam. 26.1 x Int Diam 21.9 x Height 12.8mmResonant frequency fr: 43 KHz±2.5 KHzDielectric Loss tg δ: =0.5% ±15%Resonant impedance Zm: ≤12Ω ±15%Static capacitance Cs: 6500pF±25%@1kHzTest Condition: 23±3 °C 40~70% R.H.fr, Zm, Kr => Radial mode vibration applicationCs tanδ => LCR meter at 1KHz 1Vrms* Note that properties have a +/- tolerance.
Specification of products can change without notice.
