Bolt Clamped Langevin Transducer 40 KHz

SMBLTD45F40H - 1 Pc/Set
Manufacturer part number: SMBLTD45F40H
Sets
Availability: 331 in stock
$34.00
$7.95
$2.50
/1 Pc Set
Condition: New

Part Number: SMBLTD45F40H

Bolt-clamped Langevin type transducers (BLT) are common vibration sources in high-power ultrasonic applications such as ultrasonic cleaning tanks, ultrasonic plastic welding, ground sonar transducer, Bio Diesel mixer transducer, Solid separation transducer, stop organism growth on boat hull, Biodiesel mixing transducer, High-Torque Traveling Wave Ultrasonic Motor

Piezo Material: SM118
Body Material: Aluminum

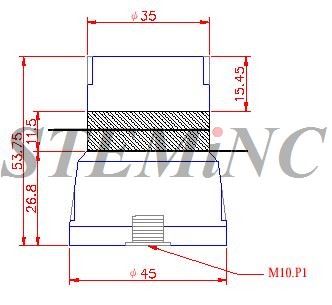

Dimensions: 53.75 x 45 x 35 mm
Resonant frequency fr: 40 KHz±1 KHz
Maximum Output Power : 70W, alone, or 50W for parallel connection
Mechanical Q: 1000
Maximum allowable velocity :40 cm/s
Maximum allowable Temperature : 120 C
Resonant impedance Zm: ≤50 Ω
Static capacitance Cs: 4000pF ±10
Test Condition: 23±3 °C 40~70% R.H.
fr, Zm, Kp => Test voltage 1Vrms
Cs => LCR meter at 1KHz 1Vrms

Applications: High-power ultrasonic applications such as ultrasonic cleaning tanks, ultrasonic plastic welding, ground sonar transducer, Bio Diesel mixer transducer, Solid separation transducer, stop organism growth on boat hull, Biodiesel mixing transducer, High-Torque Traveling Wave Ultrasonic Motor and others.
