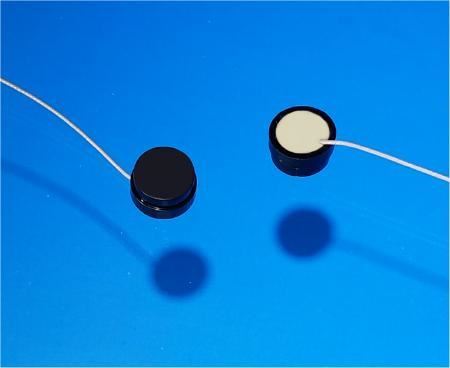

Food Grade Ultrasonic Flow Sensor, 1MHz

Food Grade Ultrasonic Flow Sensor, 1MHz
Manufacturer part number: SMFM21F1000FGP
Availability: 1401 in stock
$11.87
$7.95
$0.00
/1 Pc Set
Condition: New

Part Number: SMFM21F1000FGP

Food Grade Ultrasonic Flow Sensor, 1MHz. Excellent resistance (no attack) to Diluted Acids, Alcohols, Aldehydes, Bases and Vegetable Oils

The base plastic resin in the housing is as specified in the Code of Federal Regulations, Title 21 CFR177.1520(a)(1)(i) and(c)1.1a. All the ingredients used in it meet the respective FDA regulations and 21 CFR 177.1520(b) for use indirect contact with food.

Piezo Material: SM111
Dimensions: 12.95mm x 7mm
Input Voltage: Rated Noise Power: 5.5Vp-p
Rated Long Max.Power: 30Vp-p
Resonant frequency fr: 1Mz±0.5%
Static capacitance Cs: 710pF±15%@
Impedance: ≤235 Ω ±35%
Kt: 42 %
Sound Pressure: 90 dB
Operation Condition: -10°C-+80
Accessories: Wire Lead
Test Condition: 23±3 °C 40~70% R.H.

HOUSING MATERIAL: POLYPROPYLENE HOMOPOLYMER

Typical Properties * Test Method  Unit Value
Melt flow rate (230?, 2.16kg)  ASTM D1238 g/10min  3.0
Density  ASTM D792  g/cm3 0.902
Tensile strength at yield  ASTM D638  kg/cm2  360
Elongation at yield  ASTM D638  11
Flexural modulus  ASTM D790  kg/cm2  16400
Rockwell hardness  ASTM D785  R scale  97

Specification of products can change without notice.

Additional Notes:
