Mini Mist Generation Kit 113 KHz 600 cc/Hr

SMUTK18P600F113 - 1 Pc/Set
Manufacturer part number: SMUTK18P600F113
Availability: 487 in stock
$42.00
$9.95
$0.00
/1 Pc Set
Condition: New

Part Number: SMUTK18P600F113

Mist Generation Kit - 113 KHz, 600 cc/Hr (1 Pc of metal mesh transducer 113 KHz included with the kit) delivering droplets 4µm±1µm in size.
This solution is ideal for portable applications due to its small size and it can also be powered by USB ports (3~5V DC).

We can customize generators to other frequencies, Volume output as well as droplet sizes from 4µm~11µm. Contact us for more information.

Piezo Material: SM111
Dimensions: 41mm x 36mm x 14mm
Resonant frequency fr: 113 KHz±7 KHz
Mist Production: 600 cc/Hr*
Droplet Size: 18µm±1µm
Power input: 3~5V DC

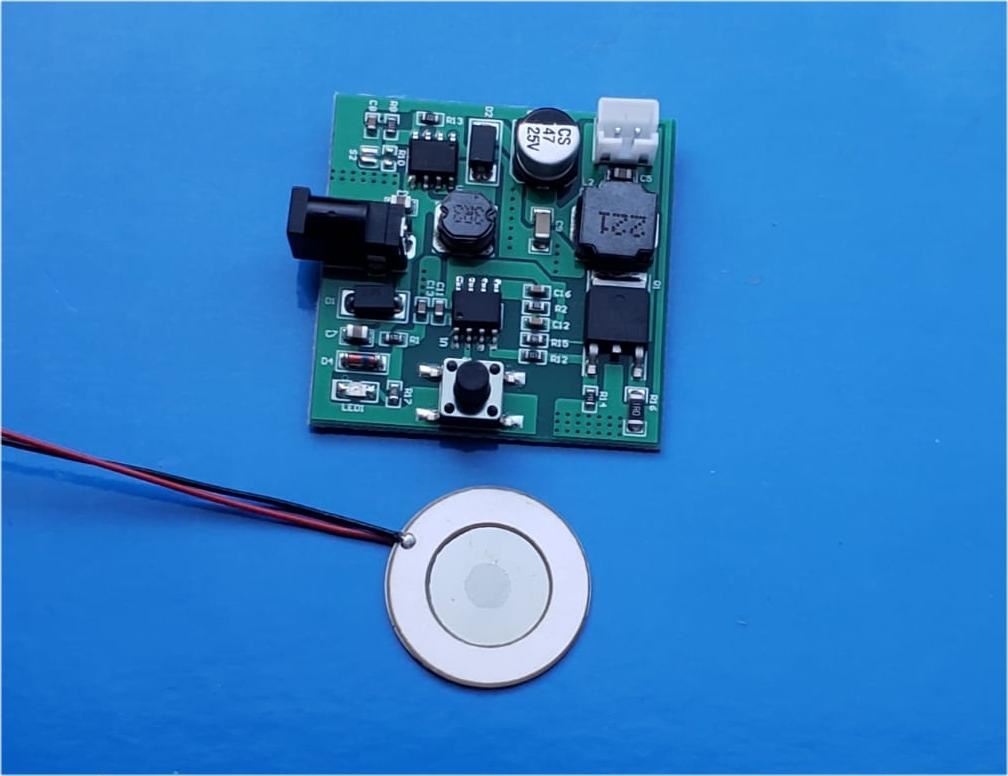

Contents : PCB Driver board and 1 Piezo transducer.
Test Condition: 23±3 °C 40~70% R.H.
Cs => LCR meter at 1KHz 1Vrms

Applications: Nebulizer transducer, Aromatherapy mist generation transducer, Mist generation transducer for Hydroponic chamber, Humidifier transducer, Inhalation and disinfection equipments, Humidification in refrigerated food displays and storage, living environment and air conditioning plants, Hydroponics cultures, Humidification in industrial process, control for lubrication, coating, Facial beautification, ICP instrument and others.
Notes:
*Typical values on laboratory testing. These values will depend on Voltage, water temperature, humidity and fan speed.
 Measurements were done with the atomizer floating on the surface without water covering the top side of the transducer.
