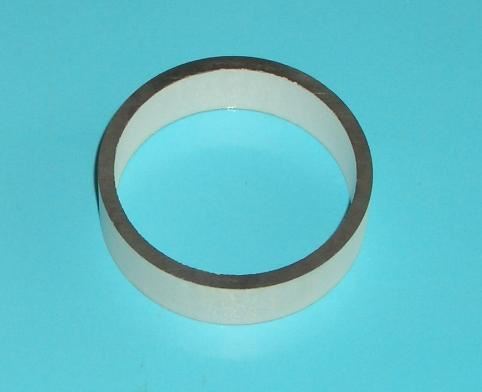

Piezo Ceramic Cylinder 51x45x14mm 22 KHz

SMC5145T14111 - 1 Pc/Set
Manufacturer part number: SMC5145T14111
Availability: 119 in stock
$37.00
$9.95
$3.50
/1 Pc Set
Condition: New

Part Number: SMC5145T14111

Piezoelectric Ceramic Cylinder. Hoop mode vibration application

Piezo Material: SM111
Dimensions: OD 51 x ID 45 x Th 14mm
Resonant frequency fr: 22KHz ± 1KHz
Electromechanical coupling coefficient Keff: 37
Dielectric Loss tg δ: =0.5% @1kHz
Resonant impedance Zr: 9.5±4% Ω
Static capacitance Cs: 8000pF±20%@ 60Hz/1V
Test Condition: 23±3 °C 40~70% R.H.
fr, Zm, Kr => Hoop mode vibration application
Cs tanδ => LCR meter at 1KHz 1Vrms

Applications, among others, are: Underwater communication, Ultrasonic Sensor, Vibration Sensor, Pressure sensor, Vibration generation, Piezo expansion sensor, compression sensor, Ultrasonic animal repelent, Ultrasonic insect repelent, ultrasonic pest control piezo transducer (68 dB).

Specification of products can change without notice.
