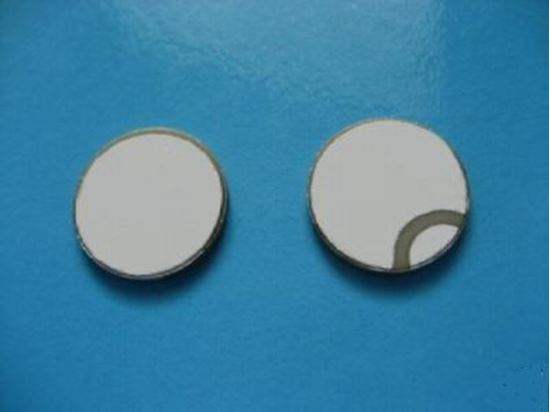

Piezo Ceramic Disc 7x0.5mm 300 KHz

SMD07T05R411 - 10 Pc/Set
Manufacturer part number: SMD07T05R411
Availability: 102 in stock
/10 Pcs Set
Condition: New

Part Number: SMD07T05R411

Piezo Electric Ceramic Disc Transducer. Both electrodes on one side (R configuration). Radial mode vibration

Piezo Material: SM411
Dimensions: 7mm diameter x 0.5mm thickness
Resonant frequency fr: 300 KHz±10 KHz
Electromechanical coupling coefficient Kp:≥55%
Resonant impedance Zm: ≤20 Ω
Static capacitance Cs: 1400pF±15%@1kHz
Test Condition: 23±3 °C 40~70% R.H.
fr, Zm, Kp => Radial mode vibration
Cs => LCR meter at 1KHz 1Vrms

Applications: Piezo transducer vibration, matter dispersion, Ultrasonic Sensor, wall thickness sensor, material stress sensor, pressure sensor,piezo electricity harvesting, compression sensor, piezo expansion sensor, biomedical probe and others.
Notes: The max voltage that this transducer can withstand is 225V

Specification of products can change without notice.
