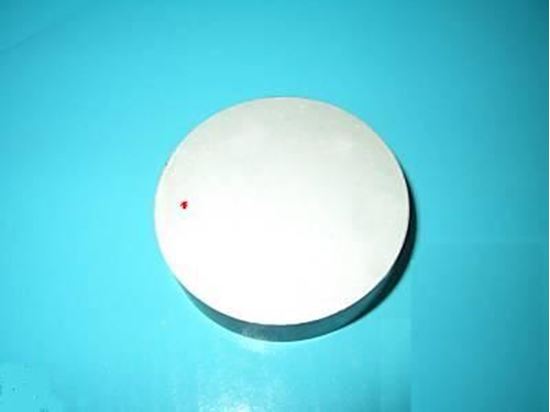

Piezo Electric Disc 43x10mm S 200 KHz

SMD43T105F200S - 1 Pc/Set
Manufacturer part number: SMD43T105F200S
Availability: 307 in stock
$29.00
$8.97
$1.00
/1 Pc Set
Condition: New

Part Number: SMD43T105F200S

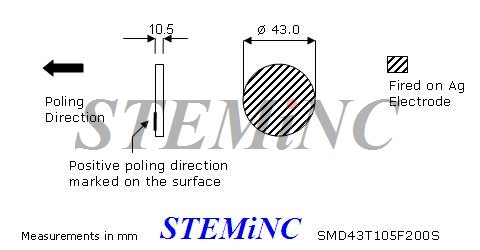

Piezoelectric Ceramic disc. Silver electrodes being one on each side (S configuration).  Thickness mode vibration application

Piezo Material: SM111
Dimensions: 43mm diameter x 10.5mm thickness
Resonant frequency fr: 200 KHz±10 KHz
Electromechanical coupling coefficient Kp:≥40%
Resonant impedance Zm: ≤10 Ω
Static capacitance Cs: 1700pF±15%@1kHz
Test Condition: 23±3 °C 40~70% R.H.
fr, Zm, Kp => Thickness mode vibration application
Cs => LCR meter at 1KHz 1Vrms

Applications: Fish Finder transducer, Piezo transducer vibration, matter dispersion, Sonar Transducer Ultrasonic Sensor, Wall thickness sensor, Material stress sensor, Pressure sensor, Vibration generation, Piezo Energy Electricity harvesting, Piezo Electricity harvesting, Fish finder transducer, compression sensor, Piezo expansion sensor, biomedical probe and others.

Specification of products can change without notice.
