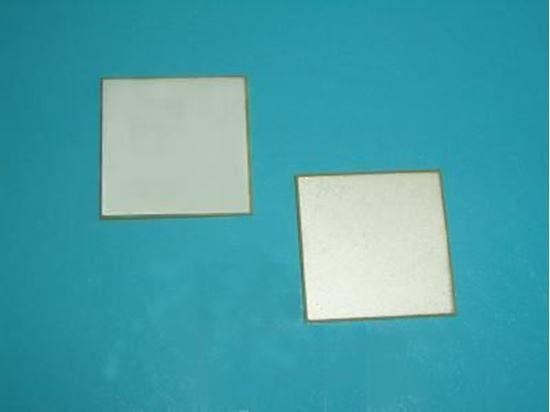

Piezo Plate 5x5x0.73mm 2.8 MHz

SMPL05W05T73411 - 2 Pc/Set
Manufacturer part number: SMPL05W05T73411
Availability: 238 in stock
$14.50
$9.95
$0.00
/2 Pcs Set
Condition: New

Part Number: SMPL05W05T73411

Piezoelectric Ceramic Plate ideal for pressure sensors. Silver electrodes being one on each side (S configuration). Thickness mode vibration.

Piezo Material: SM411
Dimensions: 5 x 5 x 0.73mm
Resonant frequency fr: 2.85 MHz ± 3%
Static capacitance: 630 pF ± 15%
Electromechanical coupling coefficient Kt: 47%
Tangent δ: 1.2% ±10%
Resonant impedance Zr: 10Ω ±10%
Test Condition: 23±3 °C 40~70% R.H.
fr, Zm, Kp => Width mode vibration application
Cs => LCR meter at 1KHz 1Vrms

Applications: Ultrasonic Sensor, Vibration Sensor, Material stress sensor, Pressure sensor, Vibration generation, compression sensor and others.

Specification of products can change without notice.
