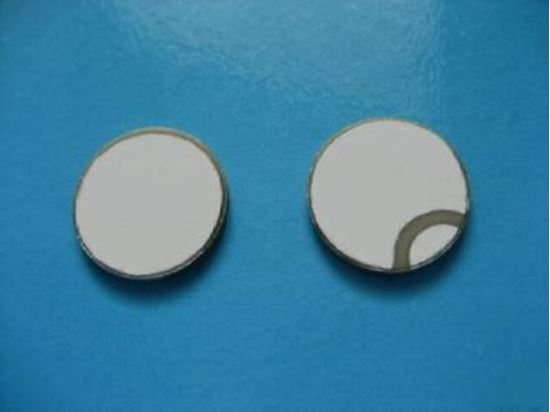

Piezoelectric Ceramic Disc 15x1.2mm 1.7 MHz R

SMD15T12R411
Manufacturer part number: SMD15T12R411
Availability: 312 in stock
$14.78
$8.97
$0.00
/2 Pcs Set
Condition: New

Part Number: SMD15T12R411

Piezo Electric Ceramic Disc Transducer. Both electrodes on one side (R configuration).  Thickness mode vibration

Piezo Material: SM411
Dimensions: 15x1.2mm
Resonant frequency fr: 1.7 MHz ± 4%
Electromechanical coupling coefficient Kt: ≥48%
Resonant impedance Zm: ≤5.3 Ω
Static capacitance Cs: 2418pF±10%
Dielectric Loss Tan∂: 1.4
Test Condition: 23±3 °C 40~70% R.H.
fr, Zm, Kp => Thickness mode vibration application
Cs => LCR meter at 1KHz 1Vrms



Applications: Piezo transducer vibration, matter dispersion, Ultrasonic Sensor, wall thickness sensor, material stress sensor, pressure sensor,piezo electricity harvesting, compression sensor, piezo expansion sensor, biomedical probe and others.

Specification of products can change without notice.
