PZT Ceramic Tube SMC9682T95111WL Wire Leads - 98 KHz

SMC9682T95111WL - 1 Pc/Set

Manufacturer part number: SMC9682T95111WL

Availability: 100 in stock

$39.98

Shipping: $12.99

Shipping Each Additional unit: $0.00

/1 Pc Set

Qty:

Condition: New

Part Number: SMC9682T95111WL

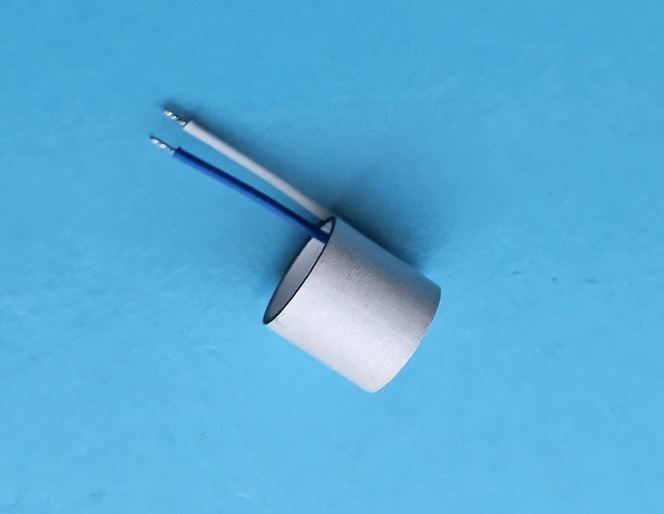

Piezoelectric Ceramic Cylinder with wire leads. Radial mode vibration

Piezo Material: SM111
Dimensions: 9.6x8.2x9.5mm +/-2%
Resonant frequency fr: 98 KHz±5KHz
Electromechanical coupling coefficient K_eff: <22%
Dielectric Loss tg δ: <2.20
Resonant impedance Zr: ≤70. Ω
Static capacitance Cs: 6300pF±20%
Test Condition: 25±3 °C 40~70% R.H.
fr, Zm, Kr => Radial mode vibration
Cs tanδ => LCR meter at 1KHz 1Vrms

Applications, among others, are: Underwater communication, Ultrasonic Sensor, Vibration Sensor, Pressure sensor, Vibration generation, Piezo expansion sensor, compression sensor, Ultrasonic animal repelent, Ultrasonic insect repelent, ultrasonic pest control piezo transducer.

Specification of products can change without notice.
