PZT Ring 12mm 120 KHz Teflon Coated

SMR126T6RRTF111 - 2 Pc/Set
Manufacturer part number: SMR126T6RRTF111
Availability: 245 in stock
$15.88
$9.95
$0.00
/2 Pcs Set
Condition: New

Part Number: SMR1206T06RRTF111

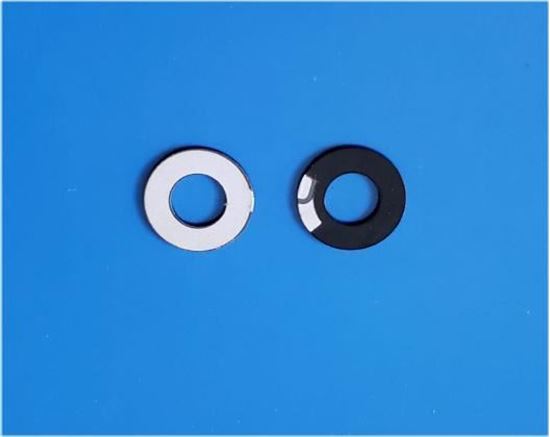

Piezoelectric Ceramic Ring with Reversed Silver electrodes on the same side and Teflon coating on one side. This ring vibrates on Radial mode.

Piezo Material: SM111
Dimensions: OD 12 x ID 5.97 x Th 0.63mm
Resonant frequency fr: 121KHz ± 3KHz
Electromechanical coupling coefficient Keff: ≥36%
Resonant impedance Zr: 6.6Ω ±25%
Static capacitance Cs: 1525pF±5%@ 60Hz/1V
Test Condition: 23±3 °C 40~70% R.H.
fr, Zm, Kp => Radial mode vibration application
Cs => LCR meter at 1KHz 1Vrms

Applications: Ophthalmic Devices, Ultrasonic Sensor, Vibration Sensor, Pressure sensor, Vibration generation, Piezo expansion sensor, compression sensor and others.

Specification of products can change without notice.
