Single Layer Piezo Transformer 70 KHz 8W

SMSTF70P8S8C - 2 Pcs/Set
Manufacturer part number: SMSTF70P8S8C
Availability: 10 in stock
$19.98
$9.95
$0.00
/2 Pcs Set
Condition: New

Part Number: SMSTF70P8S8C

Packaged single layer Piezoelectric transformer. Lead Zirconate Titanate (PZT), Exempt application of RoHS.

Voltage Step Up Ratio: 8
Static Input Capacitance: 780pF ±10%
Working Resonant frequency: 70 KHz  ±3%
Max. Input Rated Voltage: 130 Vrms
Resonant impedance*1,2: 75Ω (max)
Input static capacitance*1: 760pF ±10%
Electromechanical coupling coefficient K31*1,2: 25 %(min)

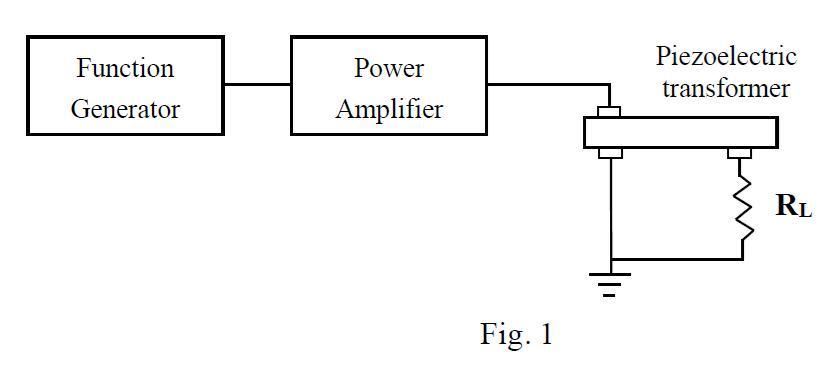

Max. Output Rated Voltage: 6000 Vpp (Momentarily, with load: 100MΩ, 3pF, Test circuit shown on figure above)
Max. Output Rated Power: 8W (λ sine wave resonant frequency drive with load 75KΩ ~300KΩ , Test circuit shown on figure above)
Dimensions: 35.1 x 12 x 4.2 mm
Test Condition: 23±3 °C 40~70% R.H.

Applications, among others, are: Inverter for CCFL of LCD backlight which can be used in notebook PC, LCD monitor, PDA, DSC, DVC, smart phone, etc.

*1 : At 25 ± 3℃, 40% to 70%RH humidity.
*2 : The resonant frequency, Impedance and electromechanical coupling factor of the piezoelectric transformer will depend on the loading, input voltage, output power, and temperature.
*3 : The voltage step up ratio is dependent on the load resistance. Higher load resistance will have higher voltage step up ratio.

CLICK HERE FOR EQUIVALENT CIRCUIT PARAMETERS
