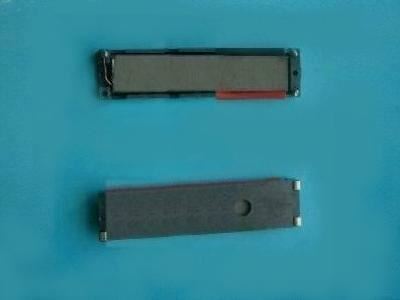

Single Layer Piezo Transformer 74 KHz

SMSTF74P6S8 - 2Pcs/Set

Manufacturer part number: SMSTF74P6S8

Availability: 35 in stock

$18.00

Shipping: $11.99

Shipping Each Additional unit: $0.00

/2 Pcs Set

Qty:

Condition: New

Part Number: SMSTF74P6S8

Packaged single layer Piezo electric transformer. Lead Zirconate Titanate (PZT), Exempt application of RoHS.

Voltage Step Up Ratio: 8
Static Input Capacitance: 880pF ±10%
Natural Resonance frequency: 74 KHz±3%
Working Resonant frequency: 74 KHz
Max. Input Rated Voltage:
Max. Output Rated Voltage: 2500 Vrms
Max. Output Rated Power: 6W
Dimensions: 44 × 6.5 × 2.2mm
Test Condition: 23±3 °C 40~70% R.H.
Applications, among others, are: Inverter for CCFL of LCD backlight which can be used in notebook PC, LCD monitor, PDA, DSC, DVC, smart phone, etc.

CLICK HERE FOR EQUIVALENT CIRCUIT PARAMETERS

Specification of products can change without notice.
